Made To Match 25-Inch Brass Toe Touch Tub Waste and Overflow

Made To Match 25-Inch Brass Toe Touch Tub Waste and Overflow

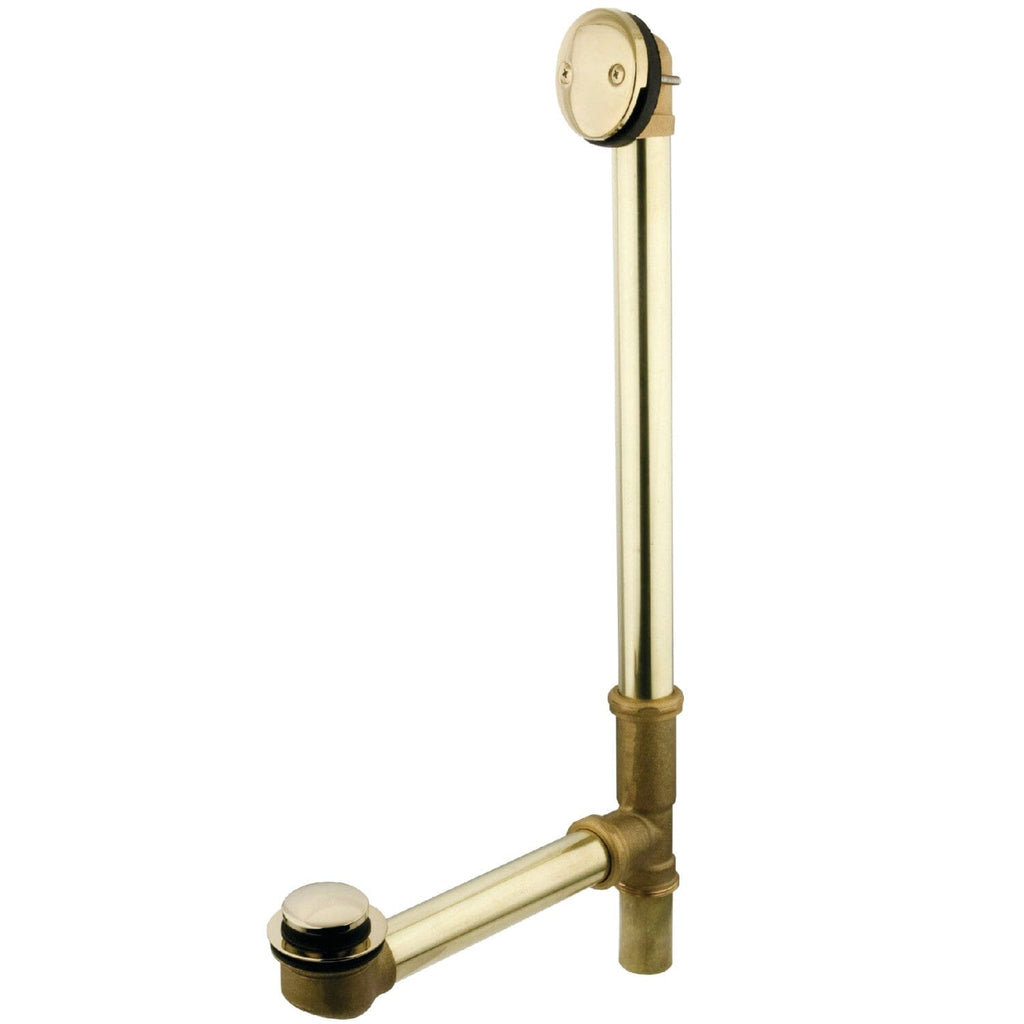

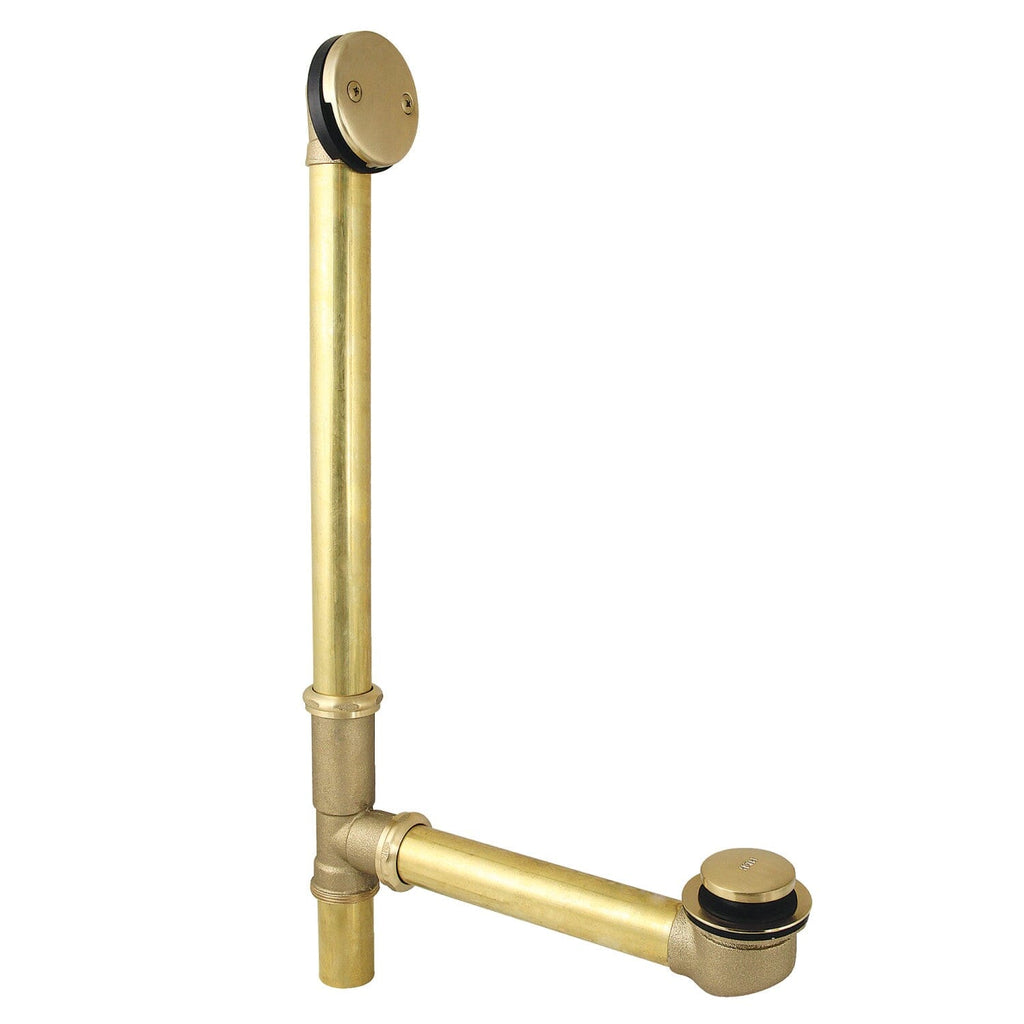

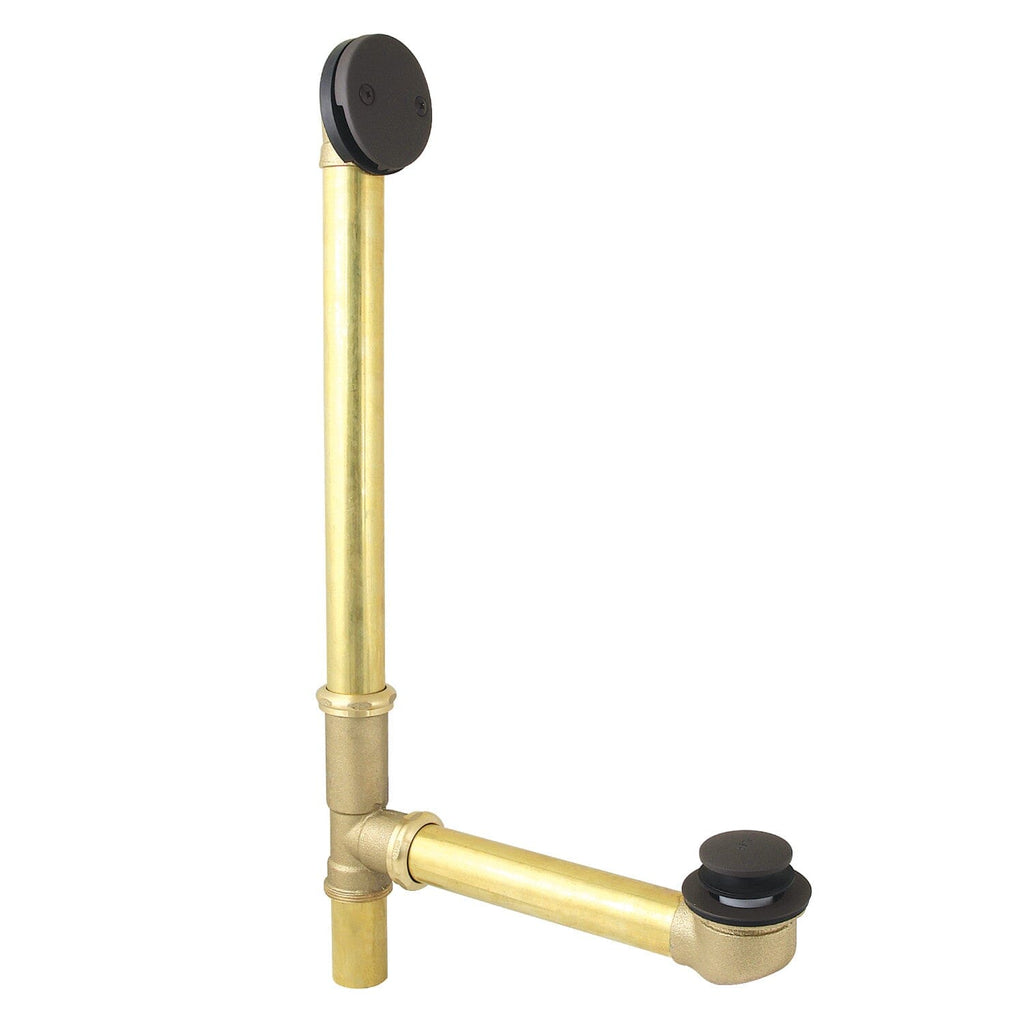

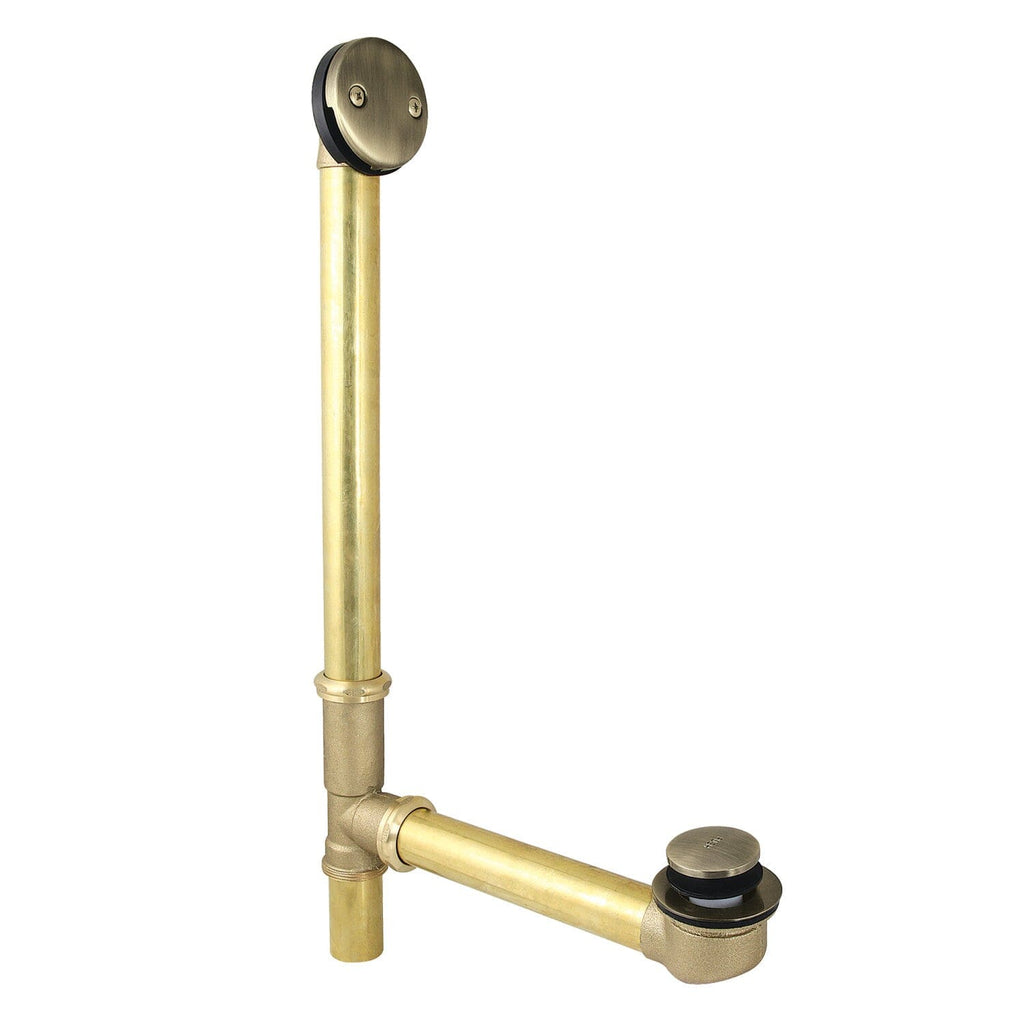

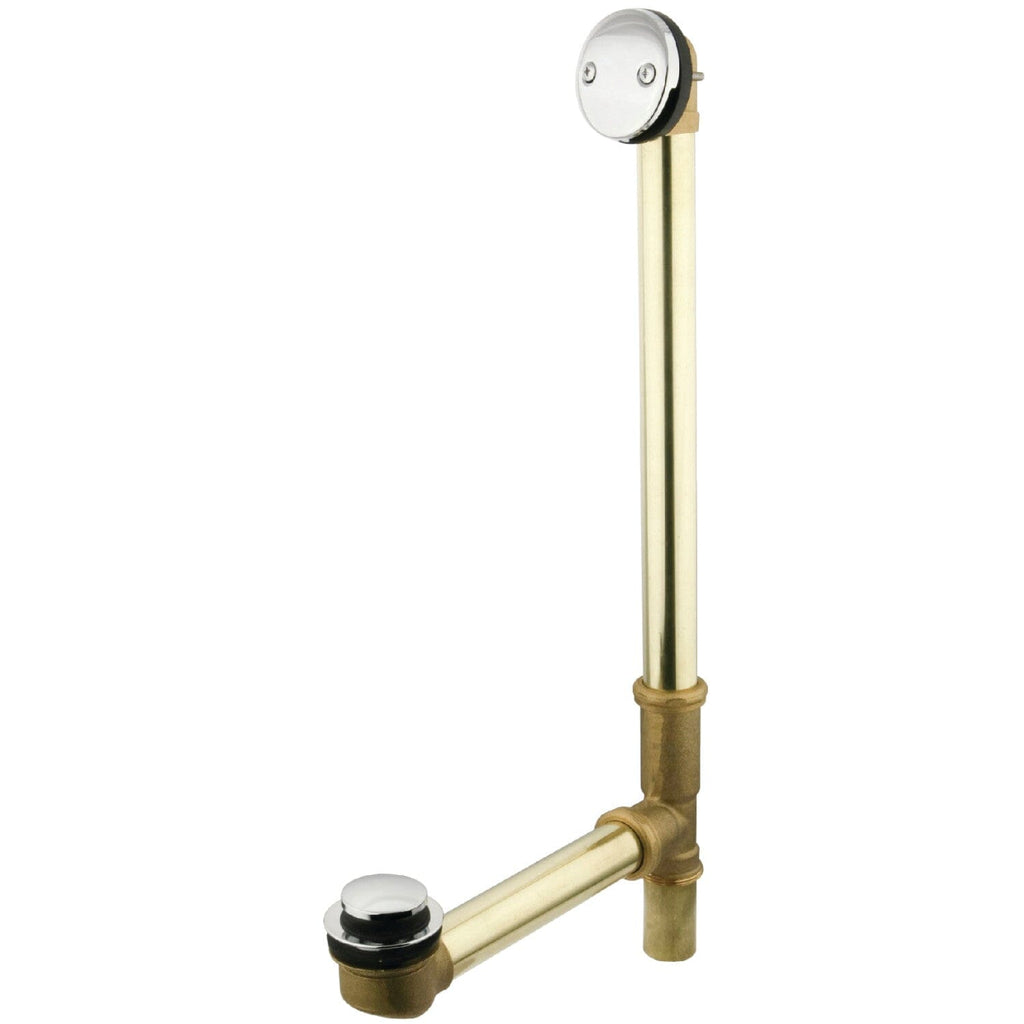

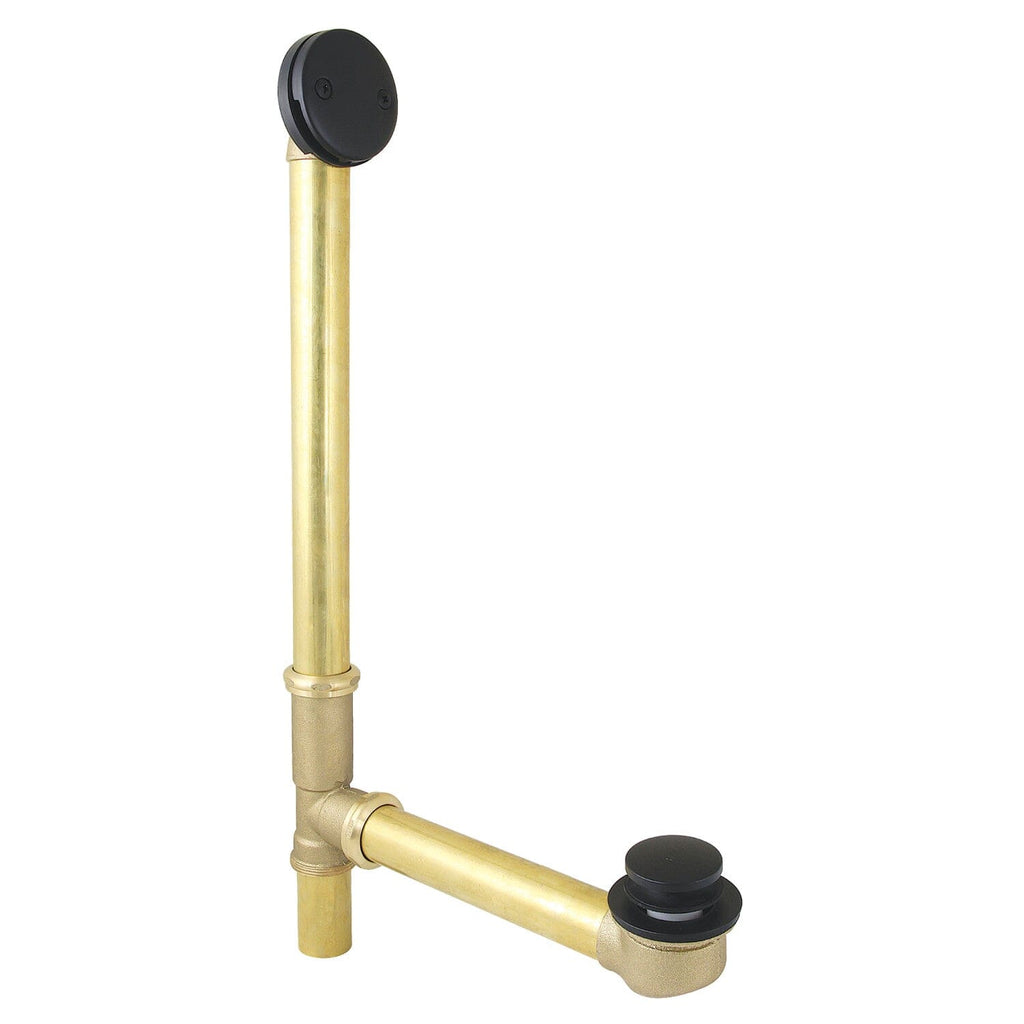

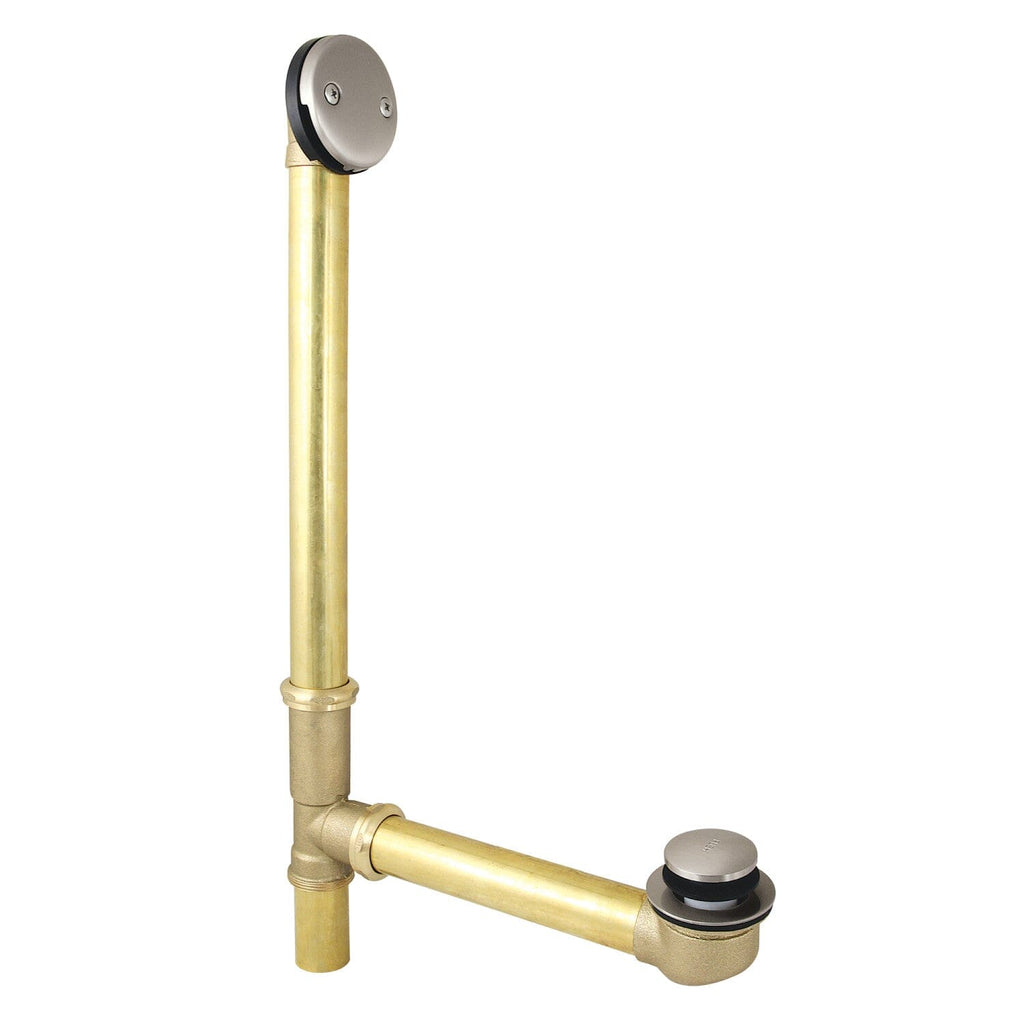

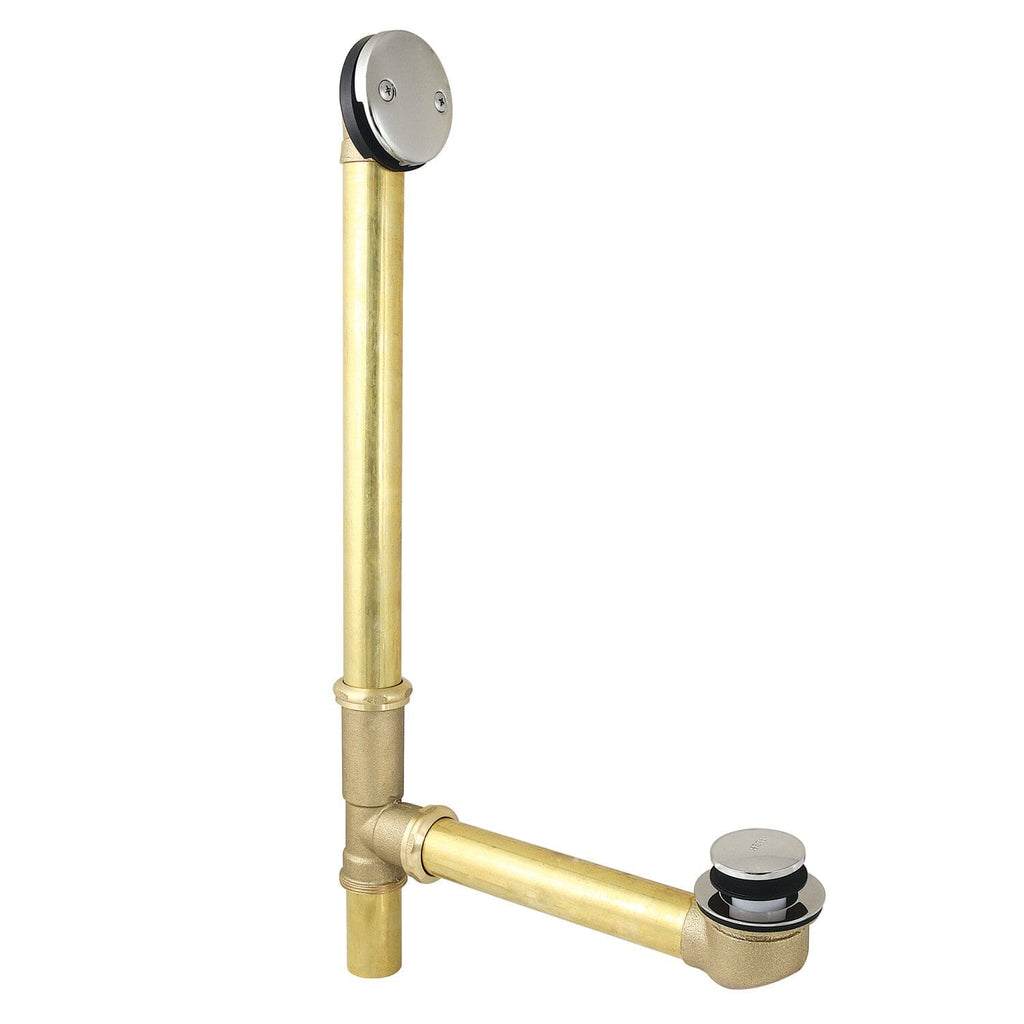

For an added simplicity and ease to your bathing experience, this toe touch drain will perform like a state-of-the-art product. Simply push the drain open or closed with the touch of your foot to activate the spring mechanism. Available in multiple finishes to match your tub filler faucet, the Kingston tip-toe bathtub drain with overflow will fit standard bathtub sizes. All necessary piping and overflow is included for use with your pedestal or clawfoot tub.

Features:

• Fabricated from solid brass for reliability
• Toe touch drain for easy operation
• 28-1/2" overflow pipe
• 12" drain pipe
• 2-7/8" diameter tube
• 1-3/8" thread length
• Fits tubs up to 24" deep (Overflow to Drain)
• Fits standard 1-1/2" NPSM threaded drains
• 20 gauge brass tubes with cast brass elbows and tee

Finish Disclaimer:

Designer Hardware offers several special finishes that fall into two main groups: antiqued/distressed and living. Our antiqued/intentionally distressed finishes include Antique Brass, Antique Copper, Naples Bronze, and Black Stainless. Our living finish is Oil Rubbed Bronze. Antiqued/distressed finishes have had a darkener applied to create the appearance of patina and age. Due to the nature of plating and distressing processes, each production lot of these finishes varies slightly in brightness and tone. Some degree of inconsistency between items in antiqued or distressed finishes should be expected. We cannot guarantee an exact match between items in these finishes. The differences in tone and brightness are a variation rather than a flaw or defect. Living Finishes change over time. Our Oil Rubbed Bronze will patina over time such as taking on highlights in high-touch areas. We consider this dynamic nature a feature that gives each faucet a unique character over its lifetime of use and does not constitute a defect or flaw. Like our antiqued/distressed finishes, some degree of inconsistency between living finish items should be expected. We cannot guarantee an exact match between items in Oil Rubbed Bronze.
